Concealed or exposed shower column: installation and maintenance differences

When you consider changing the shower taps, sooner or later this question arises: exposed or concealed shower column? It's not just a matter of aesthetic taste. The answer depends on the type of work you will need, how the assembly ages over the years and, above all, what happens the day the thermostatic cartridge fails and has to be repaired. In this article we review the real differences between both systems – installation, maintenance, aesthetics and reversibility – so that you can make an informed choice before deciding which shower kit to install in your bathroom.

Exposed or concealed: the real difference

The difference is not in the brand or the range, but in where the thermostatic mixing body is housed and where the water runs to the shower head. In a visible shower column , the entire route is visible: the thermostatic body, the shower arm, the flexible tube, the sliding bar if it has one and, in many models, also the section of pipe that goes up from the water intake to the head. It is the most common system in thermostatic shower sets and kits that are installed on an existing shower tray or bathtub.

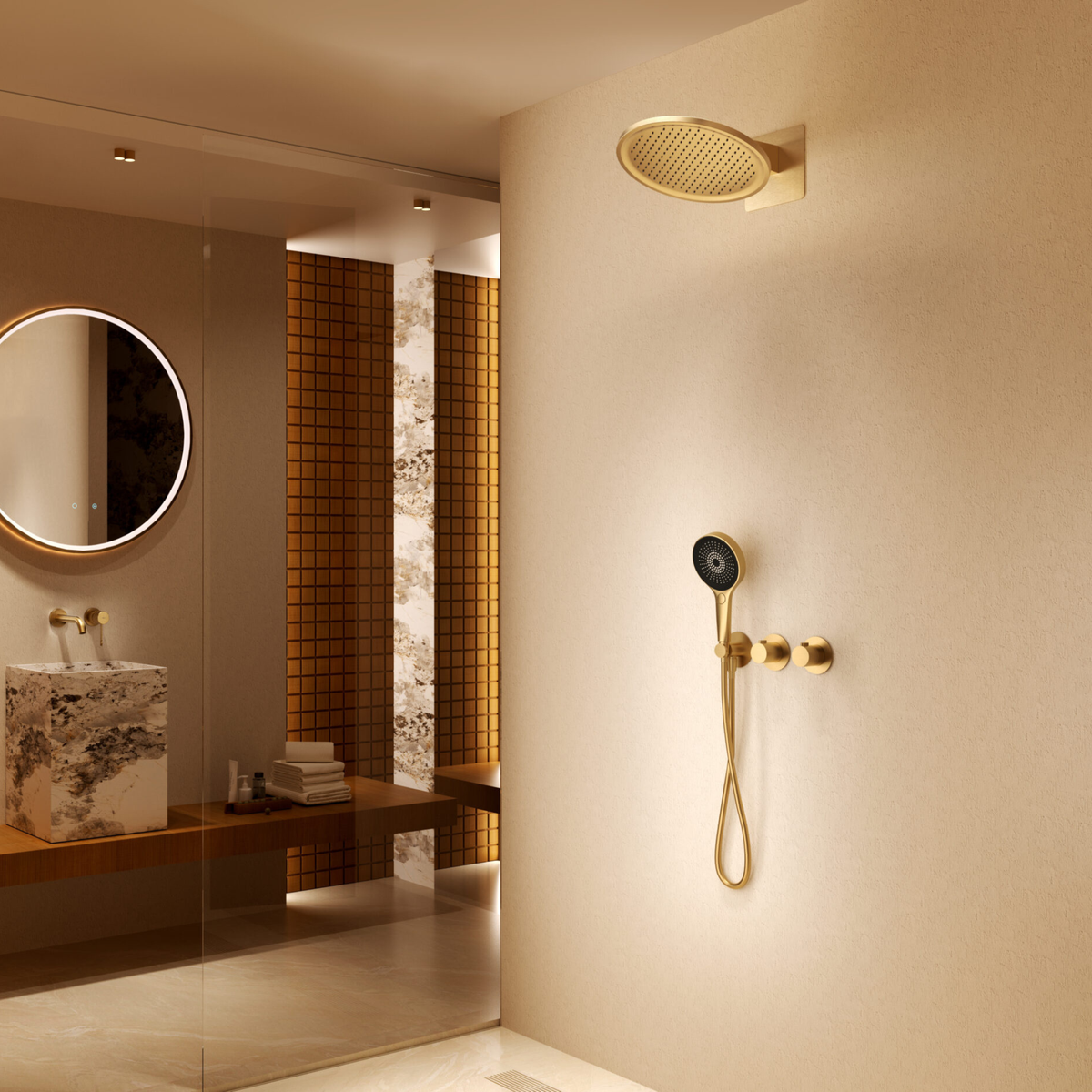

In a concealed column , however, the mixing body and the pipes are hidden within the partition, covered by the tiling. Only two elements appear on the outside: the control panel (with the thermostat or the single-lever mixer) and the arm with the shower head, both concealed flush with the wall. Everything that does the work – valves, hot and cold water inlets, mixing and temperature regulation – is hidden behind the coating.

This difference in origin is what explains everything else: the type of work you need, what it costs to install it, how it is maintained over the years and what happens if one day it has to be repaired.

In practice, the exposed column is the solution that is most seen in already inhabited homes, because it allows you to renew the shower without touching the rest of the bathroom. Built-in, on the other hand, is common in new construction, in comprehensive renovations and in projects where there is already an architect or an installer coordinating the plumbing from scratch, precisely because it requires planning the hole in the partition before there is a finished wall.

Installation: new builds, renovations and wall openings

Exposed columns: installed over finished tiling

The great practical advantage of an exposed column is that it is fixed with plugs and screws directly on the tiled wall, taking advantage of the water intake that already exists (for example, the outlet where you previously had the bathtub tap or a conventional shower tray). There is no need to chop, lift tiles, or touch the installation embedded in the wall. That is why it is the natural option when you only change the taps and want to keep the rest of the bathroom intact: it can be installed in one morning, without generating debris or having to touch up the tiling afterwards.

Concealed columns: installed before tiling

A concealed column requires access to the raw partition, before placing the final tiling. The plumber fixes the mixing body (the so-called kit or concealed box) inside the hole, connects the hot and cold water inlets, and prepares the outlet to the shower head and, if applicable, to the external control. Only then is it tiled on top, leaving the finishing plate and shower arm visible. This means, in practice, that the concealed column only makes sense in new construction or in a comprehensive renovation in which you are going to remove the bathroom tiling anyway: trying to embed a column without opening the wall is not viable, and doing it only for this change implies a major renovation work - chopping, re-laying pipes, re-tiling - that must be assessed in time and cost before deciding.

Another practical difference is the number of trades involved and the order in which they work. In an exposed column, normally the plumber is enough, and he can enter at any time because he does not depend on other phases of the work. In a concealed installation, the plumber has to enter before the tiler, leave the body fixed and tested (checking that there are no leaks before covering anything), and only then does the tiling continue. If that coordination fails—for example, if tiling is done before pressure testing the installation—the margin of error is paid for later with additional work. For this reason, in concealed renovations it is advisable to require the installer to carry out a documented watertightness test before closing the partition.

Cartridge maintenance and repair

The thermostatic cartridge is the part that is most likely to cause problems over time: it is the one that regulates the mixture of hot and cold water, and the one that suffers the most from limescale and daily use. Sooner or later it can lose precision, leak or become hard when turning. This is where the difference between exposed and concealed is really noticeable.

In a visible column , the thermostatic body is visible and accessible: to check or replace the cartridge, simply dismantle the control, remove the cartridge from its housing and place a new one, without touching tiles or creating work. It is a common, quick plumbing intervention that does not affect the rest of the bathroom.

In a concealed column , the cartridge lives inside the body housed in the partition. Some concealed systems are installed with an access plate or access panel that allows you to reach the cartridge without breaking anything; but many installations - especially the simplest or oldest ones - do not incorporate it, and in that case the only way to reach the cartridge is to chip the tiling around the control plate to expose the body, repair, and re-tile and re-grout later. It is a much longer intervention, with more associated costs (plumber, bricklayer and, in many cases, finding the same tile again) and with a margin of unforeseen events that does not exist in an exposed column.

Therefore, if you decide on a concealed column, it is worth asking during installation if the model allows you to incorporate an access panel to the cartridge: it is not always possible depending on the system, but when it is, it saves a lot of trouble in the future.

The useful life of the cartridge does not depend on the installation system itself, but on the water that passes through it: the harder the water, the more limescale is deposited on the joints and internal mechanisms, and the sooner it begins to lose smoothness of operation or precision regulating the temperature. Periodic cleaning of the filters and aerators, and avoiding forcing the knob all the way when it is difficult to turn, helps extend the life of both systems. But when the time comes to replace it, the difference in accessibility between visible and concealed is what determines whether it is a simple plumbing task or a small job.

Concealed versus exposed: comparison at a glance

Appearance and sense of space

The exposed column has its own aesthetic: the thermostatic body, the arm and the visible pipe provide a more technical appearance, with more visual presence on the wall. In industrial or contemporary style bathrooms, this presence is sought on purpose; In small bathrooms, however, it can visually recharge a surface that you want to keep clear.

The concealed column offers just the opposite: a clean wall, without visible pipes, in which only the control panel and the shower head appear. It is the option most often chosen when looking for a minimalist aesthetic or when the bathroom is small and every visible element counts. The counterpart, as we have seen, is that this aesthetic cleaning is paid for with less accessibility if something fails inside the wall.

To summarize the differences that matter the most when deciding, this table includes the five factors that we usually discuss with NOLUXA clients when they are in doubt between one system or another.

Choosing a series for your project

In our collection of shower columns we have about 340 references between different finishes, sizes and ranges, so there is plenty of room whether you are looking for a set for a quick renovation or if you are planning the plumbing of a new construction with a concealed finish. Series such as TOSCANA , MONZA or LINE —within our thermostatic shower sets and kits—are real examples of what you will find in the catalogue: each product sheet indicates the installation system, the measurements of the set and the available finishes, so before purchasing it is advisable to review that information carefully to make sure it fits with the type of installation you have in mind.

As a general rule: if your bathroom is already finished and you just want to renew the shower taps without work, an exposed column will give you the result faster and with less uncertainty. If, on the other hand, you are in a new construction or you are going to install the bathroom tiling anyway, that is the time to consider a concealed column, taking advantage of the fact that the partition will already be open to leave the plumbing ready at once.

There is one last factor that should be taken into account and that is not always thought of from the outset: reversibility. An exposed column can be changed for another, moved in position or even removed without leaving hardly any trace on the wall, which makes it especially convenient if you are not the owner of the home or if you plan to renovate the bathroom in a few years. A concealed column, on the other hand, compromises the long-term installation: changing the system, brand or layout later means reopening the partition. It is not a reason to rule it out—in new construction it is still the most aesthetically careful option—but it is advisable to decide the finish and the series more calmly, because it is not a change that is going to be repeated every few years.
